PUCK SC

Light for traffic zones - Individual lens technology for an efficient light distribution

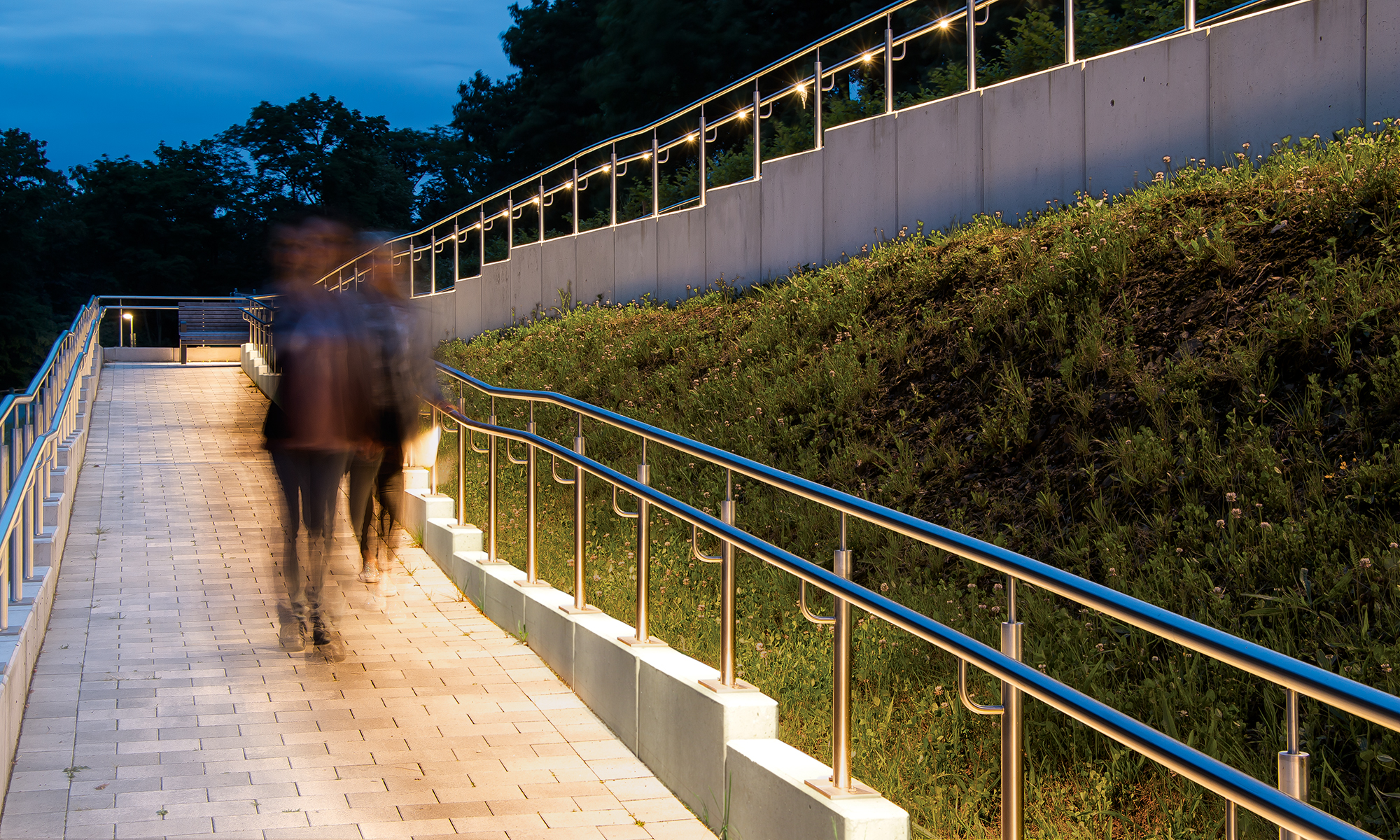

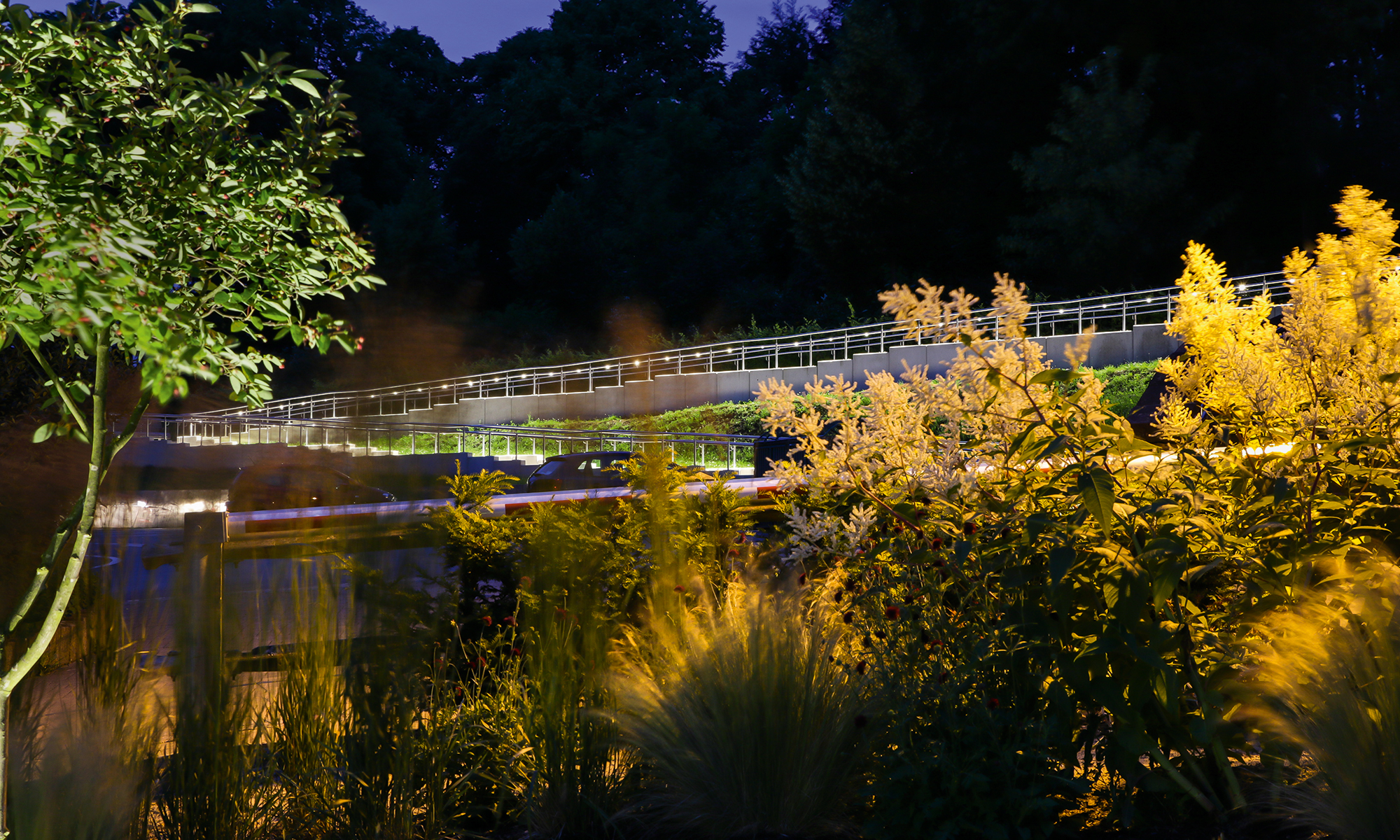

Campusbrücke Hublandcampus, University Würzburg | Kolb Ripke Architekten, Berlin; Dr. Schütz Ingenieure Kempten, Allgäu; POLA Landschaftsarchitekten, Berlin | Photography: Ignacio Linares / free2rec, Berlin

Highest demands on assembly and lighting technology

The LED lighting system was specifically developed for FLUSH-MOUNTED INTEGRATION into the profile bottom of handrails.

Because of INDIVIDUALLY ARRANGED LED UNITS, the variable system can be used both with straight lines and all radii.

RETROFITTING is also possible.

DOWNLOAD Mounting instructions and Photos

the right light - perfect effect

Achieve different effects with different light colors.

Everything is possible with the wide range of light colors for the new PUCK SC.

We have already worked with the AMBER light color for specific projects, and the 1400 KELVIN with wavelengths of 590 nm offer insect-friendly light!

ROUND or SQUARE HANDRAILS (thickness > 1,5 mm)

Lens made of impact-resistant polycarbonate (IP67/IK10)

Corrosion-protected stainless steel 316L

Retrofitting on site is possible

Optimised lens technology

New designed lenses ensure better light distribution. This  reduces the number of light points required and the installation effort up to 30 %

Variety of lighting geometries

SYMMETRICAL LIGHT DISTRIBUTION
ASYMMETRICAL LIGHT DISTRIBUTION
ASYMMETRICAL LIGHT DISTRIBUTION

Solution-oriented installation technology

RETROFITTING on site possible
EASY REPLACEMENT of individual LED pucks via screw threads
THEFT PROTECTION by special tool for disassembly

More safety through integrated lighting solution

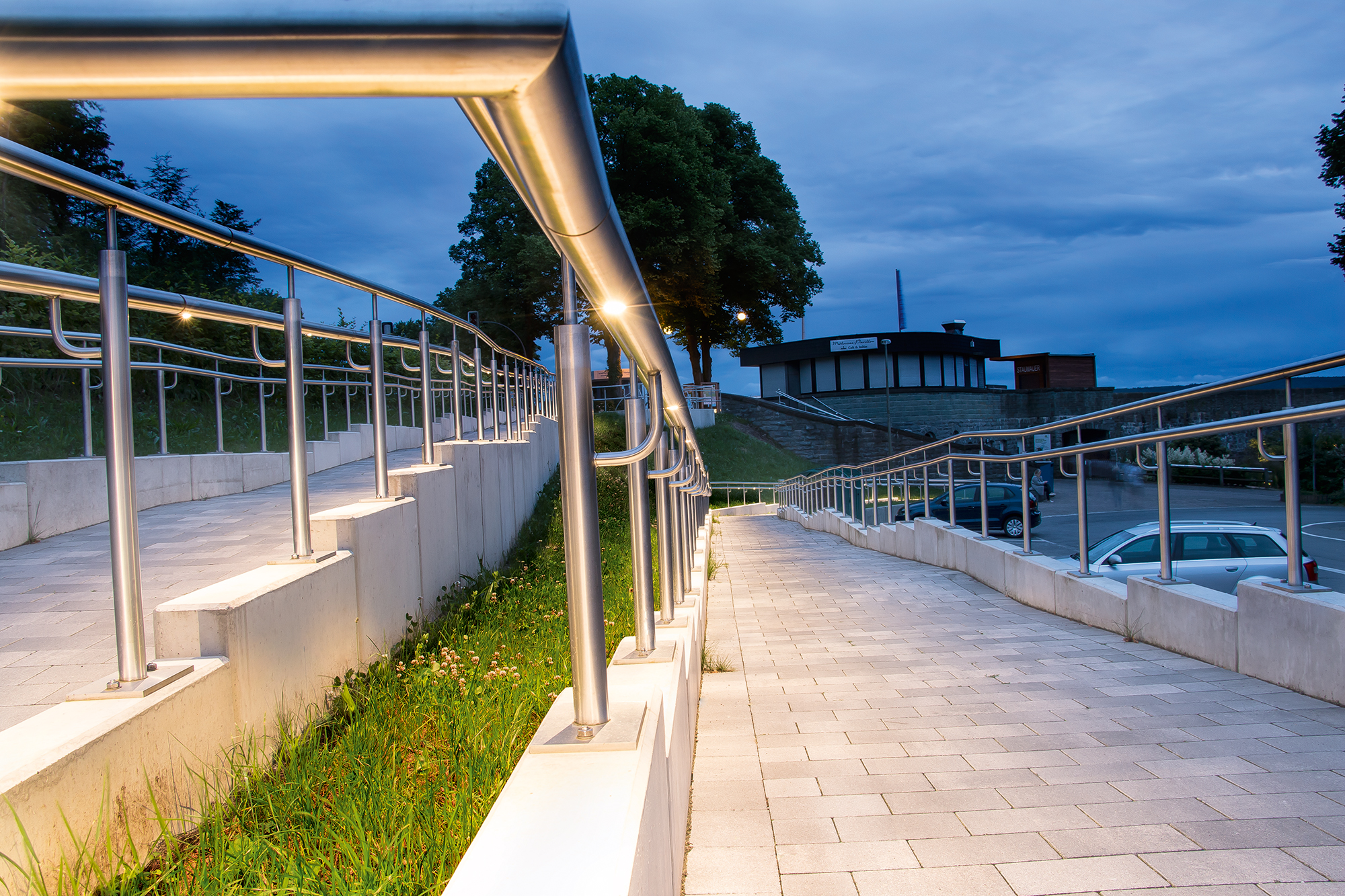

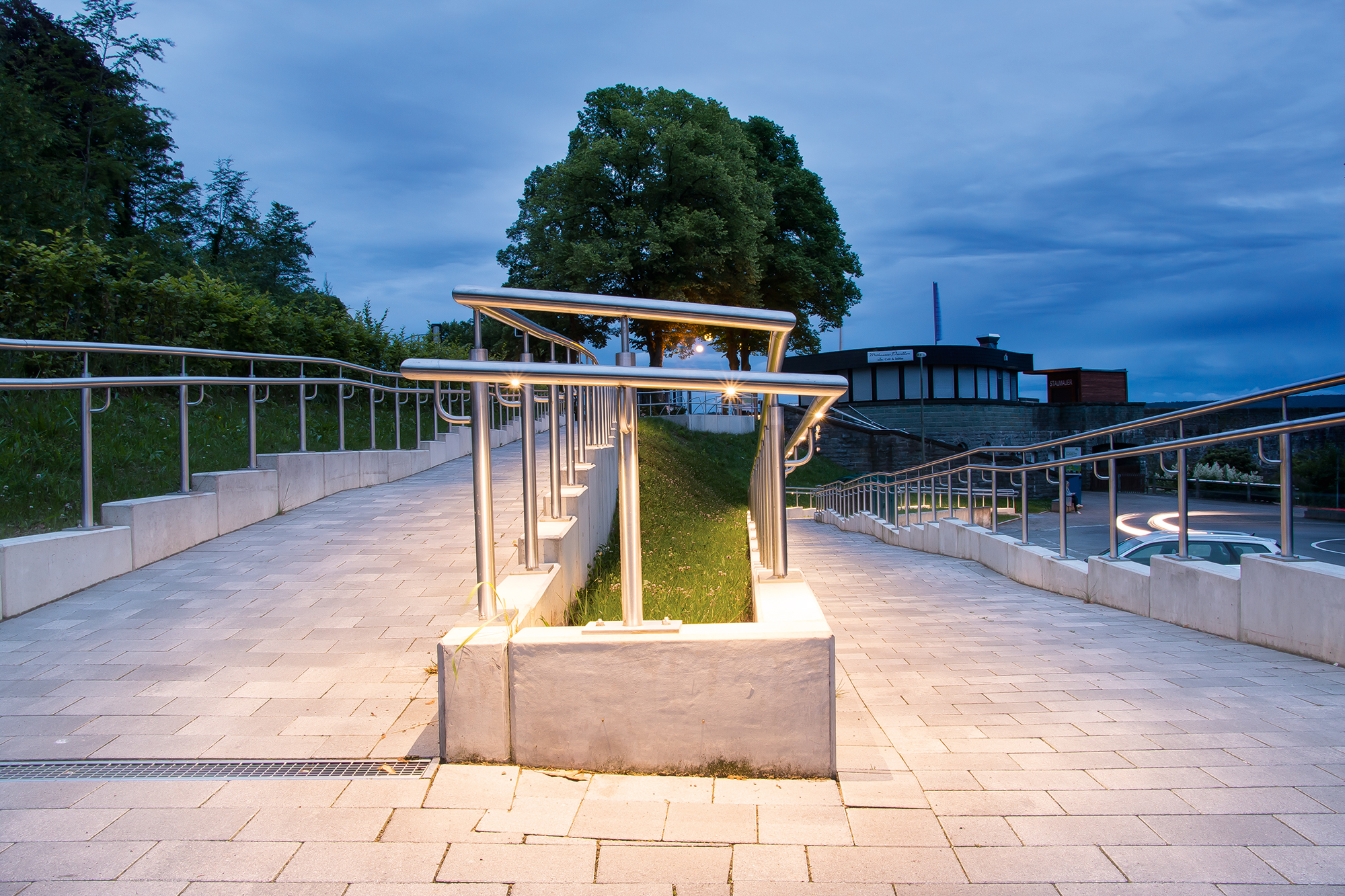

Visitors' parking lot Möhnesee | Photo: WILA

BUILT IN FLUSH with the lower edge of the handrail LED PUCKs are NEARLY INVISIBLE DURING THE DAY

in the EVENING the light emitted by the little LED spots of just 1.5 W illuminates the barrier-free access in compliance with the RELEVATE STANDARDS

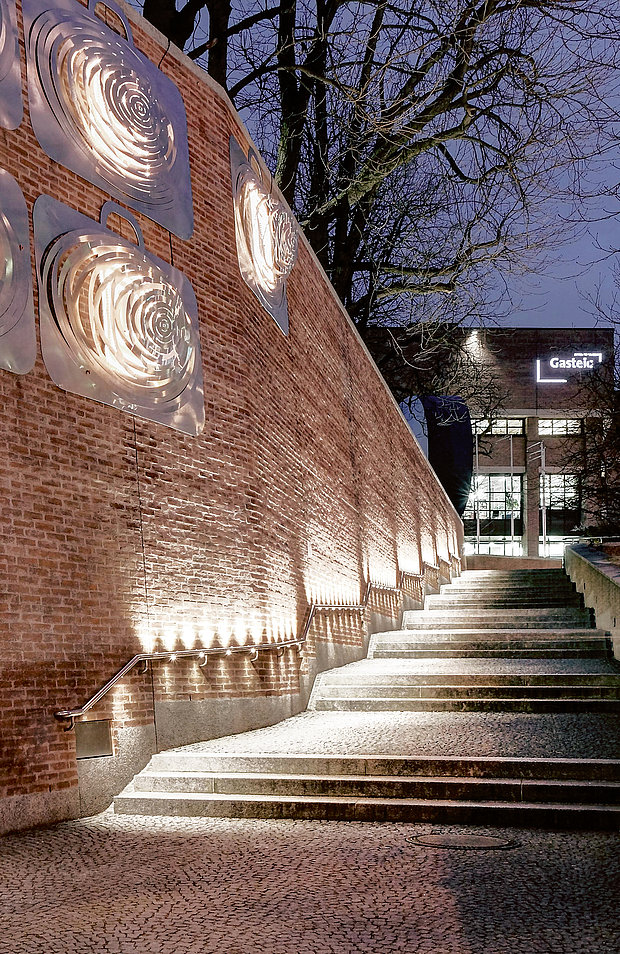

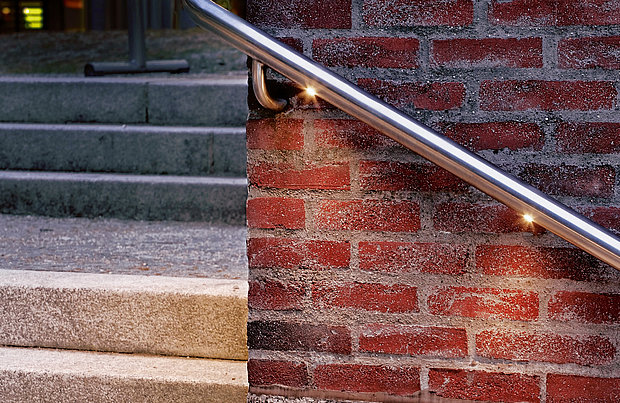

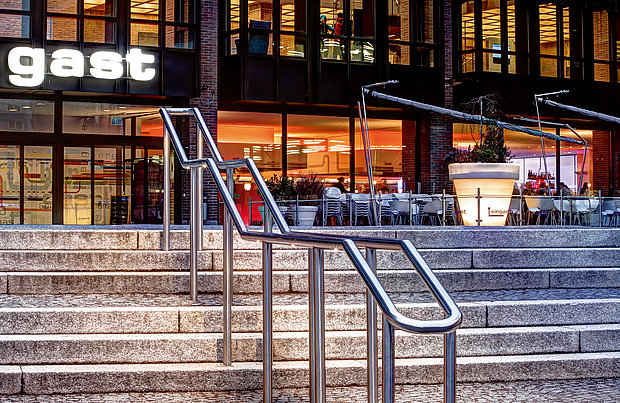

NEW LIGHTING situation for GASTEIG in MUNICH

For the numerous stairways the LED PUCK system, which was specifically developed for flush integration into metal handrails, ensures safety-focused illumination of the stairs. Furthermore, the small yet efficient light sources (1.6 W), which have a service life of some 50,000 hours, provide atmospheric lighting for the neighbouring masonry with warm white light of 3,000 Kelvin.

Lighting design: Ulrike Brandi Licht, Munich Photo: Jörn Hustedt, Hamburg

UNOBTRUSIVE LIGHTING solution for LISTED DISTRICT COURT in Halle

Thanks to the integration in a second discreet aluminum handrail, which is in front of the historical one, the light source is not perceived. In terms of lighting design the system also offers added value: illumination can be optimised even further by the offset between and the beam angle of the light sources. Thanks to flexible, individual arrays, the LED lighting system can be used both in straight and curved arrays, which was particularly necessary given the small radii at the Halle court building.

Architecture: NPS tschoban voss GmbH & Co.KG
Lighting design: Anke Augsburg Licht, Leipzig
Photo: Katia Klose, Leipzig

Airport Dublin | Architecture: Pascal + Watson, London | Arup Lighting Design, London | Photo: H-C Brinkschmidt, Hamburg

Lighting to ACCENTUATE features OUTSIDE and INSIDE

The two prominent facade projections are lit by LED PUCKs which are each in an aluminium tube of 50 mm in diameter in the outer area, and ensure uniform illumination.

TAILOR MADE

MARVELOUS - VARIOUS

We are familiar with special installation situations, please do not hesitate to contact us!
